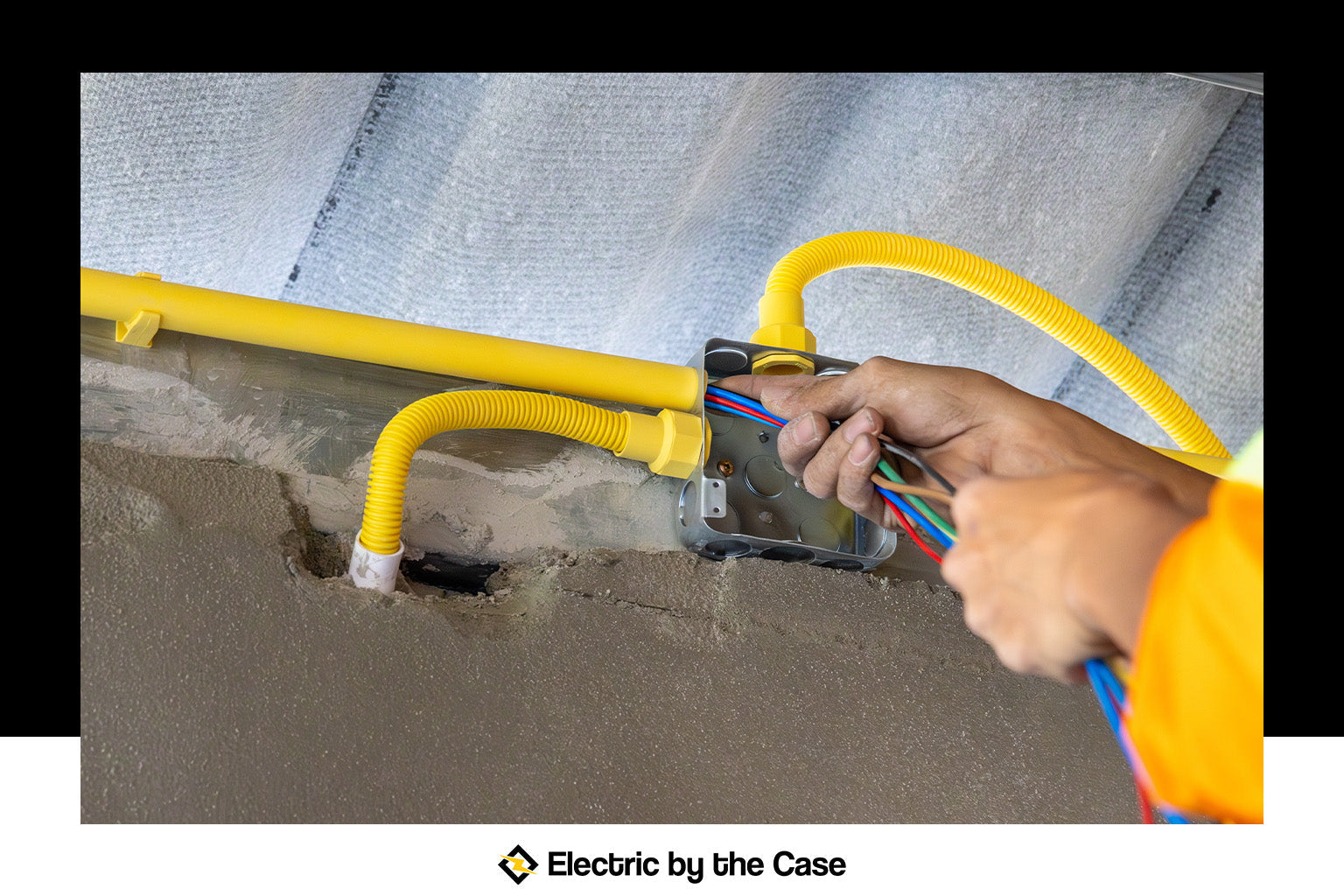

If you’ve ever asked yourself “how many wires can I put in an 18 cubic inch box?” or searched for a reliable “box fill calculator,” you’re in the right place. Proper electrical box fill calculation is critical for safety, code compliance, and avoiding expensive callbacks. Overcrowding can lead to overheating, damage, and inspection failures. We’re here to give you the exact formulas, examples, and practical tips to make box fill calculations simple and precise.
Electrical Box Fill Calculator
Why Box Fill Calculations Matter
The National Electrical Code (NEC) requires that electrical boxes have enough cubic inches to safely contain all wires, devices, clamps, and fittings without overcrowding. This ensures heat dissipation and protects conductors from damage. Inspectors commonly check box fill during final walkthroughs, so it pays to get it right.
NEC Rules for Box Fill: The Basics
- Each conductor that originates outside and terminates or is spliced inside the box counts as one unit.
- All equipment grounding conductors combined count as one unit total.
- Each conductor for a device or yoke counts as two units.
- Internal clamps count as one unit.
- Each support fitting (like a cable connector) counts as one unit.
The Box Fill Formula
Calculate the total number of units, then multiply by the volume per unit based on wire gauge. Finally, compare that to your box volume in cubic inches.
Step 1: Count the Units
Add:
- Each conductor entering the box (including grounded and ungrounded wires) = 1 unit each
- All grounding conductors combined = 1 unit
- Each conductor that terminates to a device (switch, receptacle) = 2 units
- Each internal clamp = 1 unit
- Each cable connector or support fitting = 1 unit
Step 2: Multiply Units by Volume per Wire Size
NEC Table 314.16(B) lists these volume allowances:
- 14 AWG wire = 2.0 cubic inches per unit
- 12 AWG wire = 2.25 cubic inches per unit
- 10 AWG wire = 2.5 cubic inches per unit
Step 3: Calculate Total Volume Needed
Multiply your total units by the volume per unit for your wire gauge to get the total box volume required.
Example Calculation: How Many Wires in an 18 Cubic Inch Box?
Suppose you have:
- 5 conductors (14 AWG) entering the box
- 1 grounding conductor bundle
- 1 device (switch) with 2 conductors connected
- 1 internal clamp
Count units:
- 5 conductors = 5 units
- Grounding conductors = 1 unit
- Device conductors = 2 units (1 device × 2 conductors)
- Clamp = 1 unit
Total units = 5 + 1 + 2 + 1 = 9 units
Multiply by volume per 14 AWG wire (2.0 cu. in): 9 × 2.0 = 18 cubic inches needed
This exactly fits an 18 cu. in. box, so it’s code-compliant but no room to spare.
Box Volume Chart for Common Box Sizes and Wire Counts
| Box Volume (cu. in.) | Max # of 14 AWG Conductors | Max # of 12 AWG Conductors | Max # of 10 AWG Conductors |
|---|---|---|---|
| 12 | 6 | 5 | 4 |
| 16 | 8 | 7 | 6 |
| 18 | 9 | 8 | 7 |
| 20 | 10 | 8 | 8 |
| 22 | 11 | 9 | 8 |
| 24 | 12 | 10 | 9 |
| 28 | 14 | 12 | 11 |
| 30 | 15 | 13 | 12 |
Final Tips
- Always check the exact box volume printed on the box or datasheet. Nominal box sizes can be misleading.
- When in doubt, choose a bigger box. It’s easier to add wires or devices later.
- Remember that all grounding wires combined count as one unit total. Don’t multiply them by the number of grounds.
- Use this calculator and double-check before installation. It saves time and ensures compliance.
We hope this guide and calculator make your job easier and your installs safer. Keep wiring smart, safe, and code-compliant.
